Project data

• Planning area: 500,000 m²
• Footprint (residential, office, commercial): 85,000 m²
• Roads: 8,000 m²
• Green parking roofs: 115,000 m²
• Green zone: 292,000 m²

RENEWABLE ENERGY

Photovoltaic technology converts sunlight into electricity and produces no air pollution.

PV DATA:

Solar radiation incident: 1,460 – 1,640 kWh/m²

Yearly system losses: 80%

Electricity produced on horizontal planes: 1,168-1,314 kWh/kWp

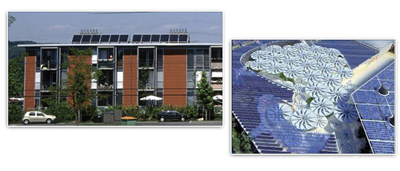

By installing solar panels on the roofs of the buildings (85,000 m² ) it’s possible to produce 6,100 MWh/year
that supplying the 40% of the overall electrical residential demand.

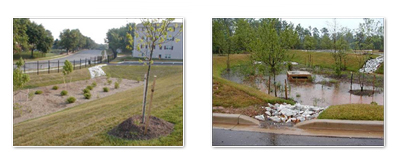

SUDS: Sustainable Urban Drainage Systems

• Source control;
• permeable paving such as pervious concrete;
• Storm water detention;
• Storm water infiltration;
• Evapo-transpiration (ex. green roof).

RESOURCE → WATER

Provide a more sustainable approach than what has been the conventional practice of routing run-off through a pipe to a watercourse.

WATER DATA: Average consumption: 120 l/day per person Annual consumption: 44 m²/ year Water residential demand: 650,000 m² /year .

Is needed to realize 37,000 m² for the wastewater treatment and approximately 45,000 m² of detention basins .
